Catalog Inventory
Products in GLOBE VALVES (8)
Every individual product size, rating, and model extracted and ready for prompt supply.
Ex-Stock Dubai
#1
In Stock
View Details
Bronze Globe Valve
Size: From ¼” to 4” NPT & BSPT
#2
In Stock
View Details
Bronze Globe Valve Undrilled F/T
Size: From ½” to 4
#3
In Stock
View Details
S.S Globe Valve CL150 CF8 F/T
Size: From ½” to 6”
#4
In Stock
View Details
S.S Low Pressure Globe Valve 200#
Size: From ½” to 4” NPT & BSPT
#5
In Stock
View Details

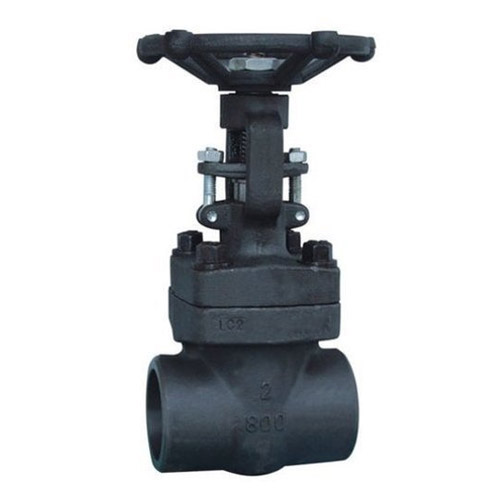

S.S & M.S Forged Steel 800# Valve
Size: From ½” to 2" SW & NPT
#6
In Stock
View Details

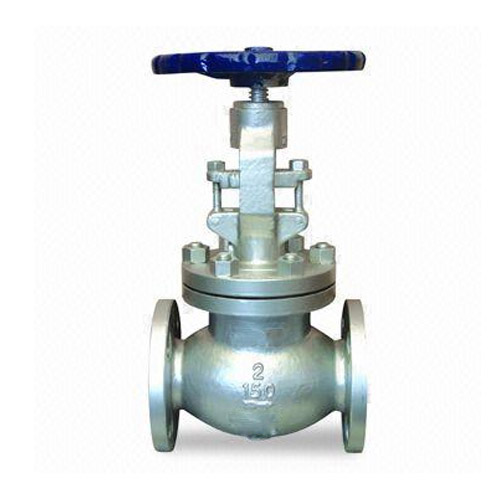

C.S Globe Valve WCB 234 CL150, CL300 F/T
Size: From ½” to 12”
#7
In Stock
View Details

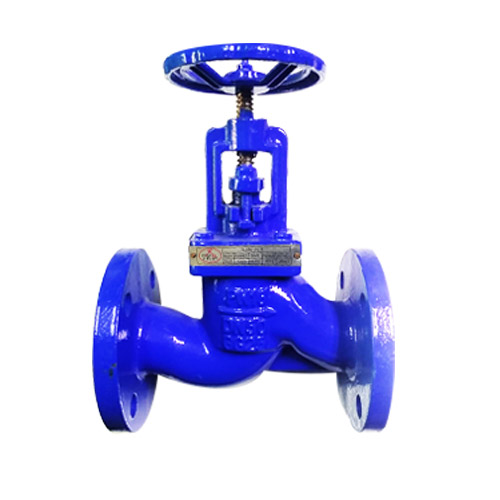

C.I Globe Valve PN16, F/T
Size: From ½” to 12”
#8
In Stock
View Details

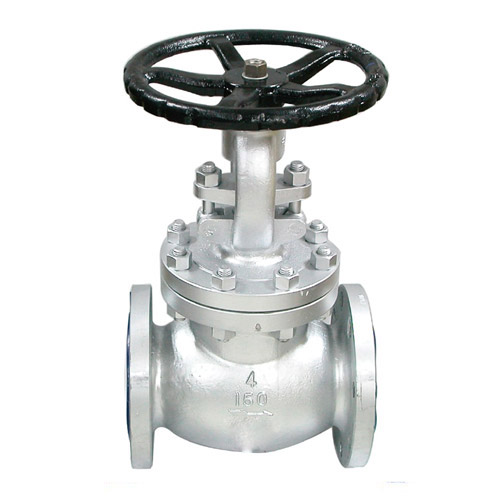

C.I Globe Valve CL150, F/T
Size: From ½” to 12”
Standard Engineering Data
Category Technical Specifications
Size Range1/4" to 12" (DN8 - DN300)
Pressure Rating / ClassClass 150 - 800 / PN16 - PN160
Material Options
Carbon Steel A216 WCBForged Steel A105Stainless Steel CF8/316Bronze
Governing Standards
BS 1873API 623ASME B16.34
End ConnectionsFlanged RF, Butt-Weld, Threaded NPT & BSPT
Design & Construction Features
Plug or Parabolic throttling disc
Bolted bonnet design with spiral wound gasket
Renewable seat rings
Low emissions packing
Suitable Industry Applications
Steam & Condensate SystemsHigh-pressure feed waterChemical ProcessingMarine Engine Rooms
